Productdetails:
|
| Kantelbereik: | +90 tot -90 graden | Kantelresolutie: | 0.01 graden |
|---|---|---|---|
| Kantelsnelheid: | 0,1 tot 50 graden per seconde | model: | PTU-D300 |
| Materiaal: | Aluminiumlegering | Laadvermogen: | Tot 10 kg |
| Panrange: | 360 graden continu | Communicatieinterface: | RS-232 / RS-485 / Ethernet |
| Montagemogelijkheden: | Bodem- en zijmontage | Productnaam: | Pan-kanteleenheid |
| Voeding: | 24 V gelijkstroom | ControlInterface: | RS232, RS485, Ethernet |
| PositioningAccuracy: | ±0,01 graden | Bedrijfstemperatuur: | -20°C tot 60°C |
| Gewicht: | 5,5 kg | Sollicitatie: | Bewaking, robotica, camerastabilisatie |
| Pansnelheid: | 0,1 tot 100 graden/seconde | ||
| Markeren: | 15kg Payload Pan Tilt Unit,360° Continuous Rotation Pan Tilt System,IP66 Weatherproof PTU |
||

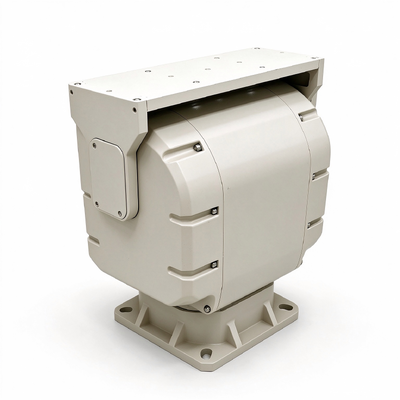

Product Description: Pan Tilt Units – 15kg paylo ad HP–S015W-PT supports any type of single or multi-part payload through a flexible bracketing system of top and/or side mounting. The real-time command interface supports advanced applications such as video tracking. HP–S015W-PT has been proven in a wide range of mission-critical applications for positioning of cameras, lasers, antennas, or other instruments in both fixed and mobile environments. It is designed for high duty
