Productdetails:
|
| Panresolutie: | 0.01 graden | Pansnelheid: | 0,1 tot 100 graden per seconde |
|---|---|---|---|
| Productnaam: | Pan-kanteleenheid | Materiaal: | Aluminiumlegering |
| Gewicht: | 3,5 kg | Bedrijfsspanning: | 24 V gelijkstroom |
| model: | PTU-D300 | Kantelbereik: | +90 tot -90 graden |
| Montagetype: | Standaard statiefbevestiging | PANsnelheid: | 0,1 tot 60 graden per seconde |
| Voeding: | 12V gelijkstroom | Bedrijfstemperatuur: | -20°C tot 60°C |
| Nauwkeurigheid van positionering: | ±0,1 graden | Controle-interface: | RS232/RS485, Ethernet |
| SCHUINE STANDsnelheid: | 0,1 tot 30 graden per seconde | Communicatieprotocol: | Pelco-D, Pelco-P |
| Pan Range: | 360 graden continue rotatie | Afmetingen: | 150 mm x 120 mm x 100 mm |
| Ladingcapaciteit: | Tot 10 kg | Tilt Range: | ± 90 graden |
| Markeren: | Heavy Duty Pan Tilt Units 50kg,360° Continuous Rotation Pan Tilt,IP66 Pan Tilt Units Industrial |
||

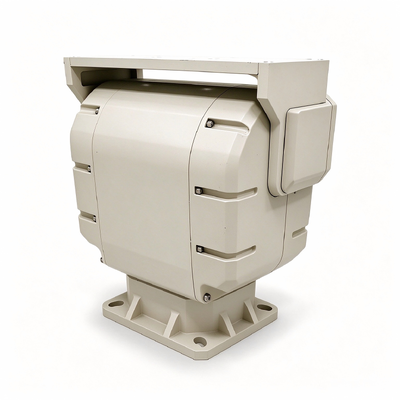

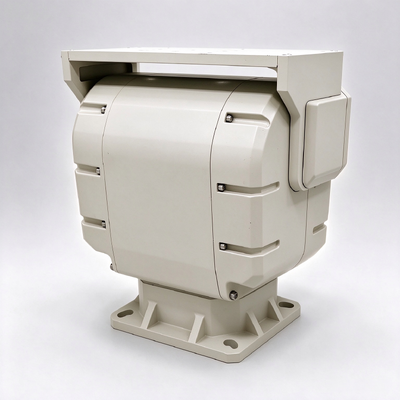

Product Description: Heavy Duty Pan Tilt Units – 50kg paylo ad Payload Capacity: 50 kg Rotation Range: Pan 360° continuous; Tilt -60° to +20° Movement Speed: Pan 0.01°–8°/s; Tilt 0.01°–4°/s Positioning Accuracy: ±0.1° Transmission: Worm gear drive with power-off self-locking mechanism Feedback: Supports real-time position/query feedback Ingress Protection: IP66 Communication Protocol: PELCO-D Interface: RS422 Technical Parameters: Model HP–S050W-PT Rotation Angle Pan: 0° to
