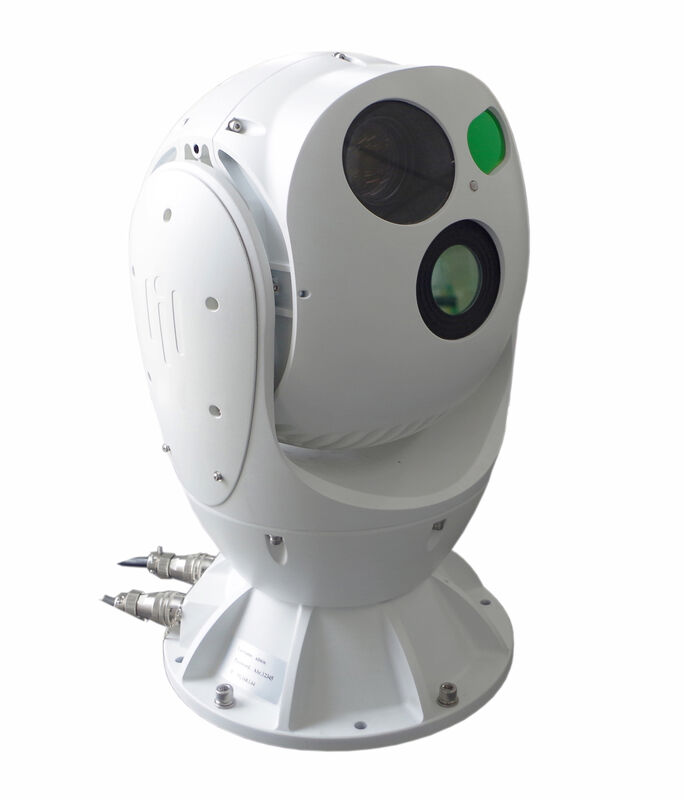

Ship Mounted Multi-sensor Camera Long-Distance Thermal Camera

1. Pan: N × 360 ° continuous rotation

2. Tilt: -45 ° ～ + 90 °

3. Limit: The pitch has a soft limit function, the program can be set

1. Horizontal speed: 0.1 ° ～ 80 ° / s

2. Pitching speed: 0.1 ° ～ 80 ° / s

3. Acceleration: horizontal 120 ° / s2, pitch 120 ° / s2

4. Drive mode: direct drive with vigorous torque rare earth permanent magnet synchronous motor, high-speed start-stop, smooth tracking with radar linkage

1. Preset position: no less than 255

2. Path scan: support preset point cruise, line scan, scan speed can be set

3. Watch function: support watch preset, line scan and cruise

1. Lens servo: support lens field of view, magnification, ZOOM / FOCUS value query, return, positioning function

2. Turntable angle: support real-time / query return and positioning functions of horizontal and pitch angles

1. Support manual control tracking

2. Support radar linkage automatic tracking

3. Support front-end module automatic tracking (optional)

4. Support automatic tracking of back-end software

1. Motor protection: turntable blocking protection, high reliability

2. Fault detection: support power-on self-check, status query and fault code feedback

3. Upgrade and maintenance: remote restart, remote upgrade function, convenient system maintenance

1. Network interface: 1 channel 10M / 100M adaptive Ethernet port (including thermal image + high-definition visible light + RS422 / 485 control)

2. Power source: 1 way DC24V

3. Physical interface: military-grade aviation waterproof plug, protection grade IP67

1. Network protocol: support TCP / IP, UDP, IPv4 / v6, HTTP, RTP, RTSP; support Onvif, GB28181 network video protocol

2. PTZ control protocol: Pelco-D industry standard and other multi-protocols, baud rate 2400, 4800, 9600, 19200 optional, customizable private protocol

1. Working temperature: -25 ℃ ～ + 60 ℃

2. Storage temperature: -30 ℃ ～ + 70 ℃

3. Humidity: <95% RH

4. Anti-lightning surge: power supply 4000V, communication video signal 2000V

5. Anti-salt spray: PH value 6.5 ~ 7.2, continuous spraying for 96 hours, can still work normally

6. Vibration resistance: meets GJB150A.16 shipboard environmental requirements

7. Protection level: IP67

1. Power supply: equipped with ultra-wide input power adapter, AC90V ～ 305V to DC24V

2. Power consumption: The maximum power consumption of the turntable ≤250W, the stable power consumption ≤50W

• Dimension:Ф280mm×430mm
• Weight:≤18kg

1. Detector: 1/3 "low illumination CMOS

2. Resolution: 1920 × 1080 (2 MP)

3. Illumination: color 0.002 Lux ＠ (F1.2, AGC ON), black and white 0.0002Lux ＠ (F1.2, AGC ON)

4. Lens focal length: 8 ～ 320mm continuous zoom

5. Action distance: Under the conditions of atmospheric visibility greater than 10km, air humidity less than 50%, and background imperviousness, the action distance to small ships or islands and reefs can reach 8km.

6. Lens control: electric zoom, manual / auto focus

7. Interface and video format: IP network output, H.265 / H.264

1. Detector: Cooled Mercury Cadmium Telluride (MCT) infrared focal plane

2. Spectral range: 3μm ～ 5μm

3. Resolution: 640 × 512

4. Pixel size: 15μm

5. Temperature sensitivity (NETD): better than 15mk (@ F4.0, 25 oC)

6. Lens focal length: 30 ～ 300mm continuous zoom

7. Action distance: when the atmospheric visibility is greater than 10km, the air humidity is less than 50%, and the target and background temperature difference is greater than 5K, the action distance to small ships or islands and reefs can reach 8km.

8. Focusing mode: manual / automatic focusing (automatic focusing supports zoom trigger, lens temperature trigger, scene detection trigger)

9. Electronic zoom: 2X, 4X, support global synchronous display

10. Polarity: hot white, hot black and 16 kinds of false colors, support multi-configuration scene mode

11. Correction: automatic / manual / background correction

12. Image adjustment: brightness, contrast, AGC automatic control

13. Image enhancement: SDE digital detail enhancement function

14. Strong heat source protection: support

15. Starting time: ≤7min (under normal temperature)

1. Wavelength: 1570nm

2. Measuring range: 100 ～ 6000m

3. Ranging accuracy: ± 3m

4. Repetition frequency: 0.2Hz

5. Control: RS422

Host configuration

(Recommended only, provided by user)

CPU: 6 cores (i7 8700 and above)

Memory: 16GB or more

Hard Disk: 1TB SATA

Display: resolution 1920 * 1080

Network: LAN or 100M Ethernet

System: Windows 7 or Windows 10

Database: MySQL 5.1 and above

Other: Windows SDK, MFC bottom support library

Power supply; keyboard, mouse, etc.
